Note: The dataset for this tutorial will be the Federal Election Commission's list of Iowa individual contributors to the 2008 U.S. Presidential Race, which you can find as a zipped file here.
Check out the previous tutorial for an introduction of how to get around OpenRefine. As we saw with a little exploration, the data on Iowans who contributed to the 2008 presidential elections is riddled with inconsistent labels and typos.
For instance, look at the many ways that Hy-Vee, a popular grocery chain, is spelled:
It's simple enough to clean this up on a company-by-company basis. But we really don't know how many companies there are in this dataset, nevermind the many ways the companies might be misspelled.
This is where Refine truly shines as a tool.
Duplicating a column
The very first step you should do in every cleaning operation is to duplicate the data that you intend on cleaning. So let's say we want to clean up the
contbr_employer column with all of its Hy-Vee variations. We want to keep the original data so that we have a reference to what it was compared to the cleaned up version.
In Refine, we can duplicate a column by clicking the dropdown and selecting Edit column > Add column based on this column…
This will bring up a pop-up window. We can do lots of fun things here with a little programming knowledge, but for now, let's just type in a New column name, such as
cleaned_up_contbr_employer, and hit OK:

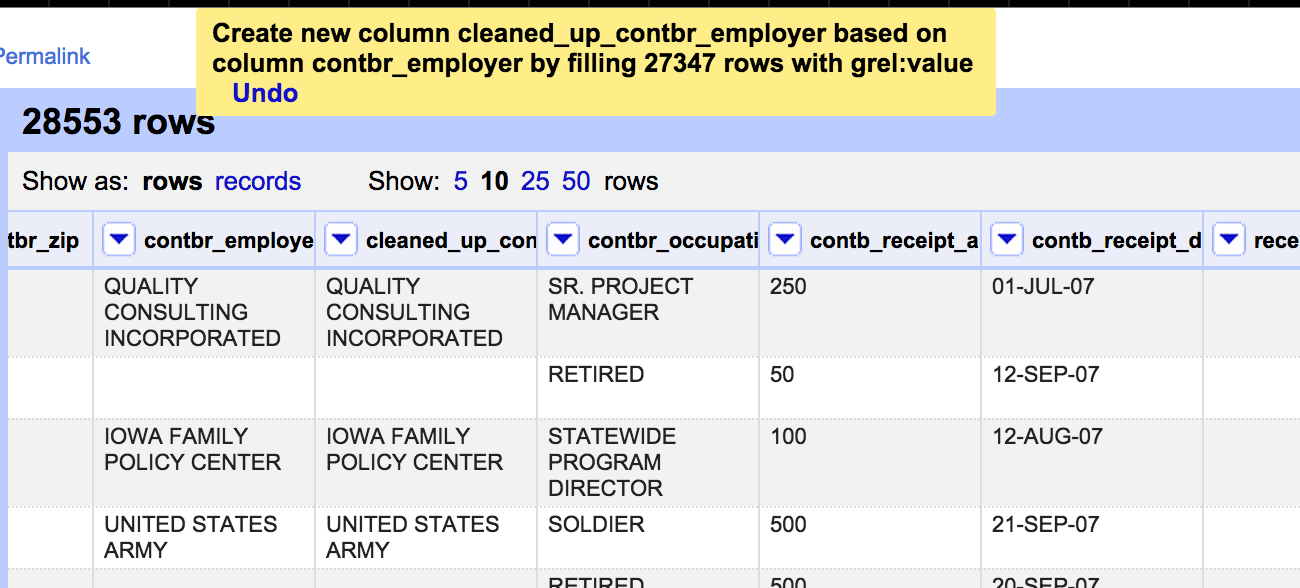

Refine will let us know how many rows for which it duplicated the values (except for the blanks, in which case, it didn't have to do anything) and we will see a new column next to the original column:
First, do a Text facet of the
Troubleshooting too many facets
Note: If you get an error about there being too many facets, in your browser address bar, visit this address:
Then, add a new property with this name:
And give it a value of 10000:
If the clustering works as intended, in the Iowa data, you should see 2999 different employers.

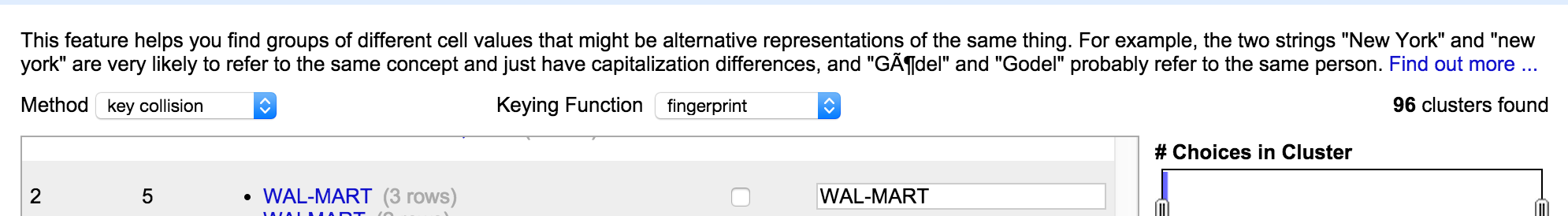

Now click the Cluster button to bring up a new pop-up:
The screen will seem a little overwhelming, but what Refine is doing here is showing how all the terms will be clustered together given the currently selected clustering algorithms.
By default, the first clustering algorithm is the strictest: the key collision method named fingerprint. And according to Refine, there are 99 clusters found:

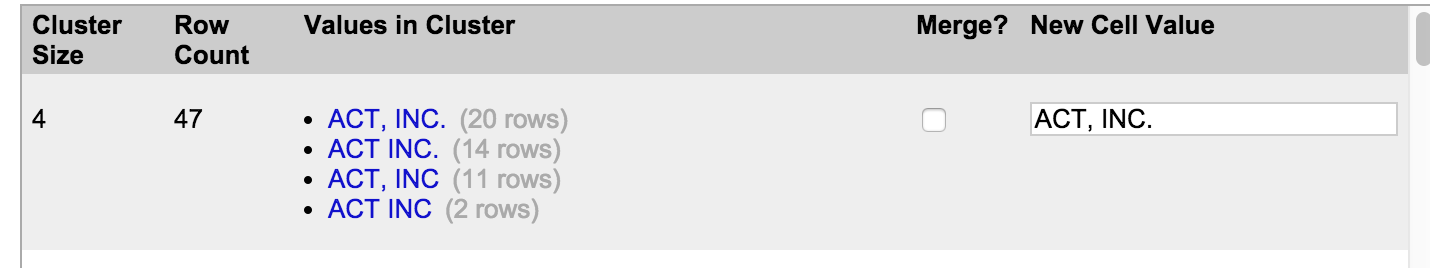

What exactly is a cluster? Take a look at the first one, which should be
ACT, INC.(20 rows)
ACT INC.(14 rows)
ACT, INC(11 rows)
ACT INC(2 rows)
Refine is telling us that all of these terms are pretty much the same, minus punctuation and spelling variations. The "(20 rows)" refers to how many rows have that facet.
There are two options we have per cluster:
- Do we want to merge the cluster?
- And if we do merge the cluster, what should be the value used for all variations of this cluster?
Obviously, if we don't want to merge the cluster, we leave the Merge? option unchecked. However, if we check that box, the default value used will be
ACT, INC.…it's the default because more rows in this cluster have
ACT, INC. (20), versus all other variations, such as
ACT INC, which as 2 rows.
Go ahead and click the Merge checkbox. Then at the bottom of the popup, click the Merge Selected & Close button.
Then, take a look at the Facet/Filter panel. Instead of 2,999 choices for the
cleaned_up_contbr_employer, we have 2,996. In other words, the 4 variations of
ACT, INC. were collapsed into a single canonical term.
So in a nutshell, this is how we clean data in Refine: remove as many variations as possible.
Really elaborate clustering
Refine has six algorithms. Here they are in order, from strictest (i.e. the least number of false positives) to loosest (most false positives, and slowest):
- key collision: fingerprint
- key collision: ngram-fingerprint
- key collision: metaphone3
- key collision: cologne-phonetic
- nearest neighbor: levenshtein
- nearest neighbor: PPM
Since we just saw how the strictest clustering worked (fingerprint), let's jump right to nearest neighbor: PPM. Note. your computer may crash upon trying this:
It's pretty amazing the kinds of variations PPM will cluster together. Everything from
UNIVERSITY OF NORTHERN IOWA versus the typo of
UNVIERSITY OR NORTHERN IOWA to the similarity of
NOT EMPLOYED and
NO EMPLOYER – imagine trying to find that variation using simply a spreadsheet or database query.
On the other hand, there's a lot of possible false positives. For example, is
WESTERN IOWA TECH COMMUNITY COLLEGE really the same as
IOWA WESTERN COMMUNITY COLLEGE?

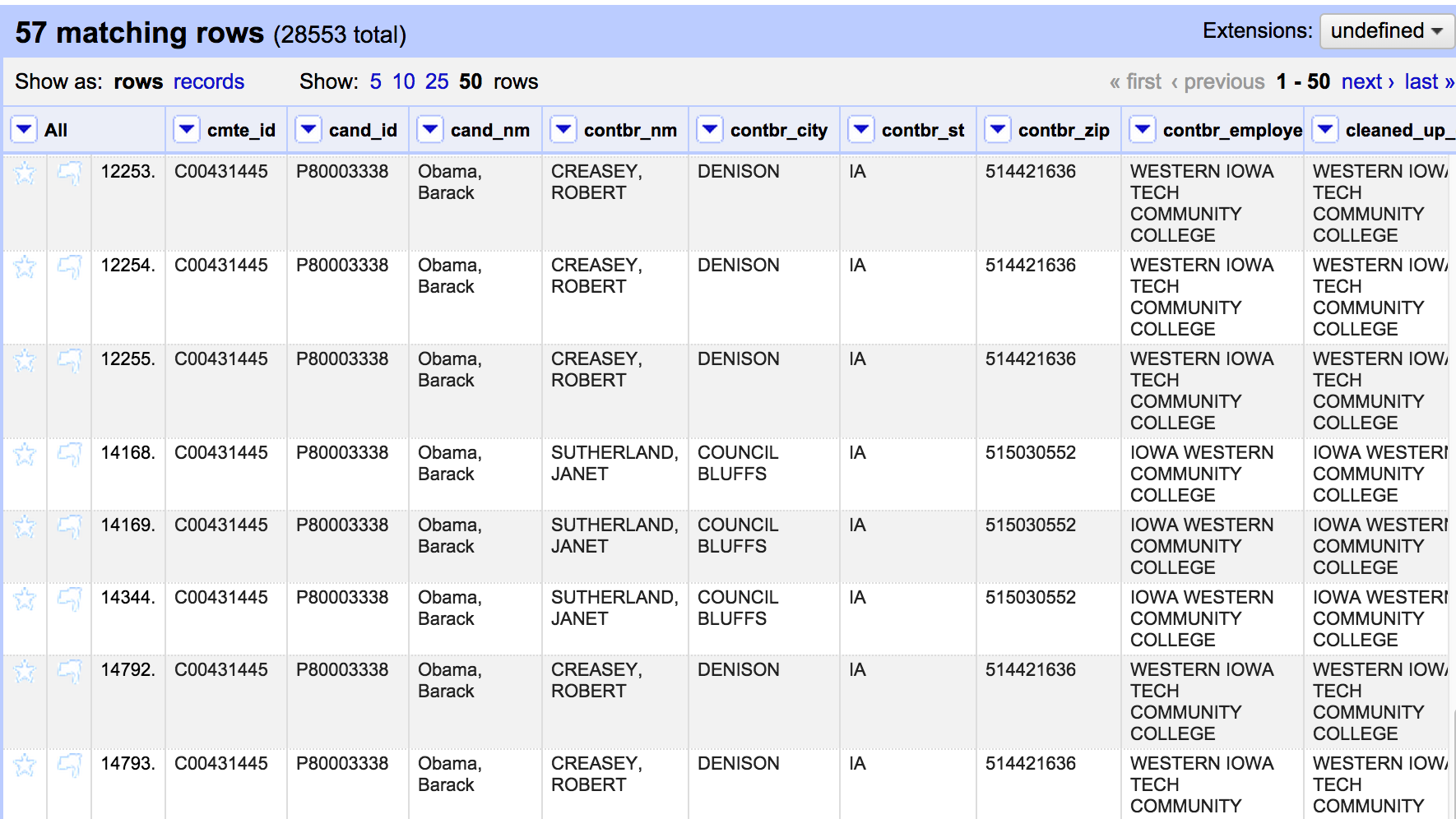

Refine's interface allows us to browse ambiguous clusters. In this example, I hover over the
WESTERN IOWA TECH COMMUNITY COLLEGE cluster, which brings up a pop-up action named "Browse this cluster". Clicking that brings up what looks like an entirely new instance of the Refine browser, but focused specifically on this single cluster:
It looks like the two colleges are indeed different, or at least they employ people from entirely different zip codes. It's not entirely unambiguous, but at least Refine gives us a way to quickly scout the situation before turning to Google.
We can close this cluster-browsing-tab to return to our previous clustering operation.
Clean and export
Pretend you've done all the clustering and cleaning you need to do. The result is that you should have the original
contbr_employer column and the cleaned up version side by side. Now you can export it by clicking the Export button in the top right.
Now, you can import into Excel, or a Pivot Table, and group by the cleaned up employer column to get a more accurate total of which company's employees contributed what.
After you've done some simple fun cleaning in Refine, it's worth examining the algorithms Refine gives us access to, as well as the theory behind those algorithms.
In OpenRefine, clustering refers to the operation of "finding groups of different values that might be alternative representations of the same thing". For example, the two strings "New York" and "new york" are very likely to refer to the same concept and just have capitalization differences. Likewise, "Gödel" and "Godel" probably refer to the same person.
The Refine wiki page has a fuller, more accurate description of the available algorithms, but I'll attempt to summarize them.
I'll cover the methods in order from strictest to loosest:
Key collision: Fingerprint
Consider these three variations of "John F. Kennedy":
John F. Kennedy
JOHN F. KENNEDY
JOHN F Kennedy
Kennedy, John F.
In a given dataset, these terms might reasonably be considered to refer to the same person. What the fingerprint method does is normalize the "whitespace" and capitalization, order the white-space-separated terms in alphabetically, and remove the punctuation. So the variations all basically look like this:
f john kennedy
And thus, they are clustered together.
Key collision: N-Gram Fingerprint
This is a "looser" version of the fingerprint. Whereas the prior method separated by whitespace, this simply removes all whitespace and then creates n-grams of the word. The explanation from the Wiki:
So, for example, the 2-gram fingerprint of "Paris" is "arispari" and the 1-gram fingerprint is "aiprs".
Why is this useful? In practice, using big values for n-grams doesn't yield any advantage over the previous fingerprint method, but using 2-grams and 1-grams, while yielding many false positives, can find clusters that the previous method didn't find even with strings that have small differences, with a very small performance price.
For example "Krzysztof", "Kryzysztof" and "Krzystof" have different lengths and different regular fingerprints, but share the same 1-gram fingerprint because they use the same letters.
In the John F. Kennedy example, these variations would be considered the same when using the ngram fingerprint:
John F Kennedy
John John F Kennedy
Key collision: Phonetic Fingerprint
This fingerprinting method eschews the spelling of a term and attempts to interpret a term as it is pronounced. So, the following variations could be clustered together:
Jon F Kennedy
Jonn F Kennedy
However, this being an even looser method, you will get false positives. For example, these are probably not referring to JFK, but might share a similar phonetic fingerprint:
Jawn Eff Kennadee
Jawn F Ken A.D.
Nearest neighbor: Levenshtein distance
The "nearest neighbor" methods are more computationally expensive, but unlike fingerprint methods, can find the kind of variations that aren't simple typos or mispellings.
Levenshtein distance is a measure of how many changes you must make to get from one term to another. For example, there is a "distance" of 1 between
John F. Kennedy and
John H. Kennedy, because the only change you have to make is converting
H. And there is a distance of 3 between
Jan X. Kennedy and
John F. Kennedy: (removing
a, and changing
X). As you can imagine, the possibility of a false positive is very high as you increase the Levenshtein distance.
Nearest neighbor: PPM
The math involved here is beyond my explanation, so I'll direct to the Wiki's explainer:
The idea is that because text compressors work by estimating the information content of a string, if two strings A and B are identical, compressing A or compressing A+B (concatenating the strings) should yield very little difference (ideally, a single extra bit to indicate the presence of the redundant information). On the other hand, if A and B are very different, compressing A and compressing A+B should yield dramatic differences in length.
PPM will almost seem like magic, and I prefer it Levensthein. The kind of variations a PPM can detect without generating too many false positives includes:
John F Kennedy
Jack F Kennedy
John Fitzgerald Kennedy
President John F Kennedy
But PPM will cluster together terms that are of no obvious relation. Refine gives you the option of decreasing the radius of the PPM algorithm: I'd advise not going far below 3 or 4.
